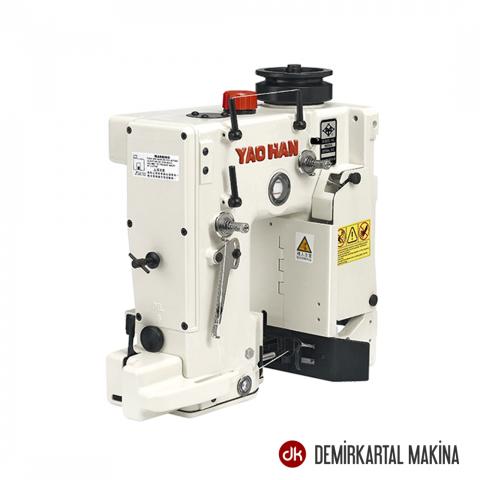

Yao Han N980A Manuel Bag Closing Machine
Manuel Bag Closing Machine
Single Needle, Two Thread High Speed Bag Closing Machine
High speed
It is the most ideal sewing machine for the use of high speed sack filling lines with its speed that can reach 2500 revolutions per minute. It is the ideal sewing machine for high speed bag filling lines with conveyor speeds of 20 meters per minute.
Unique Design
With its unique design, it provides very little vibration during sewing. Although the lubrication system used is unlike any other machine, it offers a very easy solution and greatly extends the life of the parts. N980A Manuel Bag Closing Machine is designed with all parts protected against dust and dirt in the working environment.
Usage areas
Yao Han N980A Manuel Bag Closing Machine provides easy use for sewing sacks and similar materials used in fields such as feed, seeds, coal, fertilizer, plaster. In industrial areas, all kinds of burlap seams; It can be used for sewing jute, nylon, paper bags, cotton, cross-stitch, polypropylene and similar materials. Crepe attachment can be attached for kraft bag sewing. Infeed sack feeder can be used with crimping apparatus and column.
After Delivery Services
You can create a 'Service Record' by contacting our technical team for service and maintenance.
| FEATURES | |
|---|---|
| SPEED | 2500 r.p.m. |
| MATERİAL THİCKNESS | 8 mm |
| STITCH | 7-11.5 mm |
| STITCH TYPE | 1 needle 2 thread |
| CLOSING TYPE | Plain / Tape |
| CREPE-TAPE WIDTH | Standard 55 mm, other width available (Tape binder is not included as a standard supply) |
| CUTTER TYPE | Manuel |
| LUBRICATION | Automatic |
| STANDART NEEDLE | DRx2 No. 230/26 |
| AIR PRESSURE | 4 Kg / cm2 |
| AIR CONSUMPTION | 3.5 N/min |
| TYPE OF THREAD AND DENIER | Synthetic or Cotton 20/6, 20/9 |
| MOTOR (Required) | O.75kW. 4P, 3 Phases (not included) |
| COULD REPLACE WITH | Newlong DS-9C, Union Special 8800 |
| NET WEIGHT | 44 KG |
| GROSS WEIGHT | 46 KG |
