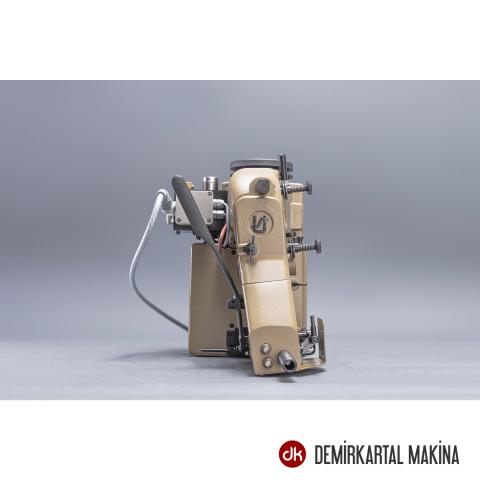

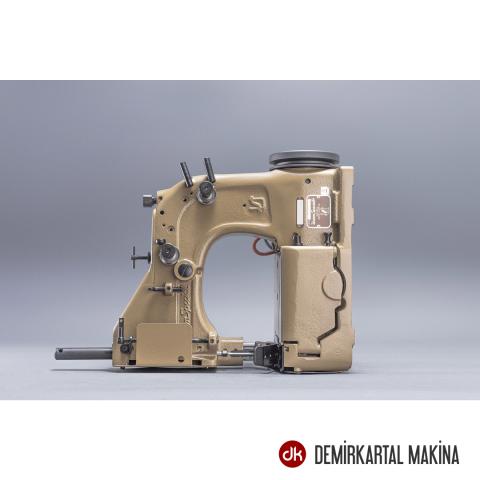

Union Special 80800RLN Automatic Bag Closing Machine
Automatic Bag Closing Machine
Ask about this product on WhatsApp!
Union Special originated the first filled bag closing machines and for over 100 years has continued to develop better equipment to keep pace with the needs of packers of flour, grain, fertilizer, feed, chemicals, seed, coffee, sugar, salt, dog food, grocery staples, minerals, and hundreds of other products.
Class 80800 sewing heads, used in combination with a line of bag closing columns, offers a complete choice of high capacity equipment.
Basic Properties
- Up to 1800 stitches/min. depending on stitch length, operation and material.
- Adjustable stitch length from 6.50 mm to 11.00 mm.
- Easy maintenance
- With special rust-protected sewing parts
- Pulley / handwheel effective diameter 108 mm
- Elliptical feed motion
- Easily adjustable loose or tighten seam thanks to thread control system
| FEATURES | |
|---|---|
| MAX. SPEED | Up to 1800 stitches/min. |
| STITCH RANGE | 2 1/2 to 4 S.P.I. (6.5 to 11 mm) |
| STITCH TYPE | 401 |
| THREAD | 2 |
| SEAM SPECIFICATION | 1.01.01/401 (ISO 4916/4915) |
| STANDARD SETTING | 3 S.P.I. (8 mm) |
| CAPACITY UNDER PRESSER FOOT | 7/16“ (11 mm), adjustable up to 5/8“ (16 mm) |
| PAPER BAGS | Up to 32 plies, depending on weight of paper |
| THREAD CUTTING | Electro-pneumatically operated thread chain cutter |
| OPERATING PRESSURE | 44 to 59 psi (3 to 4 bar) |
| DEGREE OF PROTECTION SOLENOID VALVE |
IP65 (IEC 529) |
| HANDLING | Stationary use of the machine on a column |
| STANDARD NEEDLE | 9848GF250/100 |
| CONTROL | Control of start-stop and cut-off via integrated button |
| OIL SYSTEM | Manual oiling depending on use and place of use |
| WEIGHT | Approx. 34 kg |
