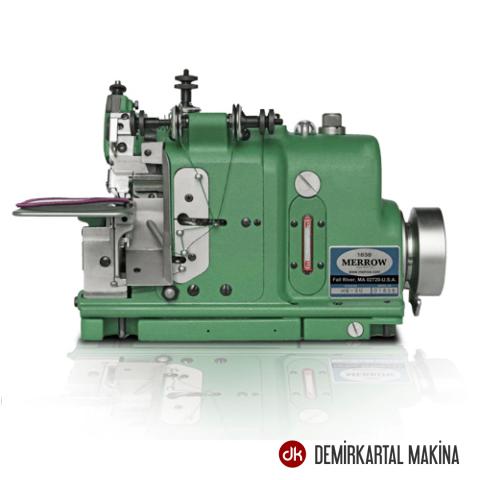

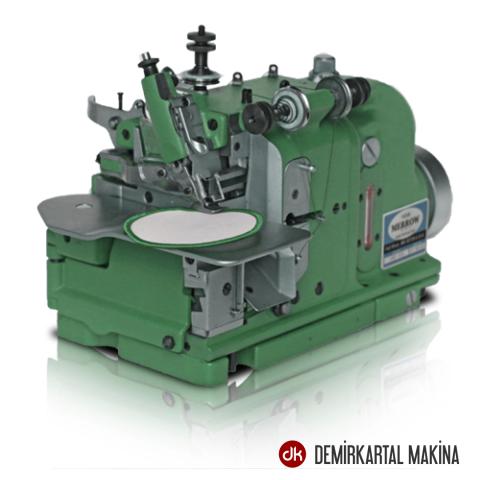

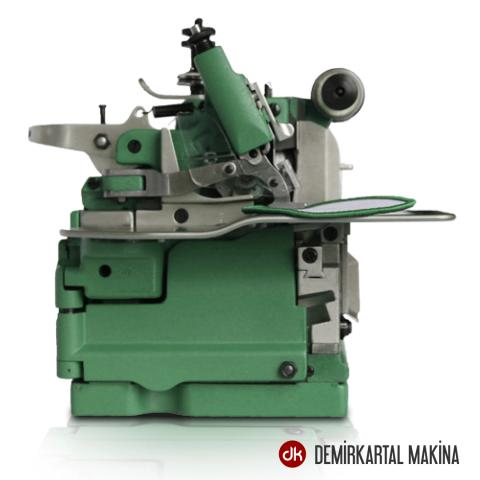

Merrow MG-3U Emblem Edging Sewing Machine
Sewing Machine for Tight Decorative Edge on Emblems and Patches
The Merrow MG-3U sews a tight decorative edge on emblems and patches. The MG-3U stitch is renowned for its consistency, coverage, and uniformity.
The Merrow MG-3U is a 3-thread industrial sewing machine that is meant for putting a decorative edge on emblems and patches. It makes a 1/8" to 3/16" stitch at a standard rate of 28 SPI (though this can be decreased or increased to 20 or 40 SPI respectively), yet even while running at 5500 RPM still operates under 90 dbA. The MG-3U carries a 10 year warranty, though it is expected to run for years after that with routine care.
The MG-3U uses lightweight moving parts and needle bearings that are manufactured to extremely high tolerances, permitting the fast and smooth starts and stops inherent in intermittent operations like emblem edging. As a result, sewing edges on an MG-3U assures a uniformly finished, unmatched stitch.
The MG-3U is a versatile industrial machine that will satisfy the needs of the local emblem shop to the factory producing thousands of patches per day.
| FEATURES | |
|---|---|
| OPERATING SPEED | 5500 RPM |
| STITCH WIDTH | 1/8"-3/16" |
| STITCH RANGE | 20 - 40 SPI |
| STANDARD NEEDLE | 4SDT |
| MERROW NEEDLE RANGE | 3SDT - 5SDT |
| STITCH TYPE | 505 |
| MOTOR REQUIRED* | 1/2HP, 3450 RPM |
| NUMBER OF THREADS | 3-6 |
