FX700 Series Chain Stitch Big Bag Sewing Machine
Singe and Double Needle Double-Locked Stich Machine for the Production of Container Bags

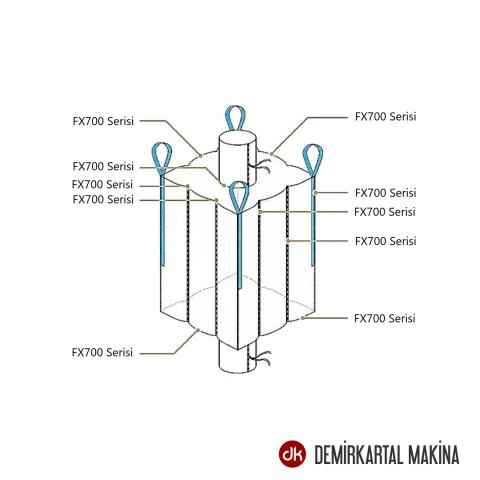

The sewing machine developed for big bag manufacturers is capable of performing both overlock and chain stitches simultaneously. It is equipped with bottom and top thread feeding, dual transport from the bottom and top, and is used for heavy-duty big bag sewing. It is used at side body sewing, lower leg, upper leg and cover sewing.
FX701
- Chain Stitch Machine, single needle, upper and lower transport.
- Standard upper and lower filler cord feeding.
- Spring foot presser system.
FX701H
- Chain Stitch Machine, single needle, upper and lower transport.
- Standard upper and lower filler cord feeding.
- Pneumatic foot presser system.
FX702
- Chain Stitch Machine, double needle, upper and lower transport.
- Standard upper and lower filler cord feeding.
- Spring foot presser system.
FX702H
- Chain Stitch Machine, double needle, upper and lower transport.
- Standard upper and lower filler cord feeding.
- Pneumatic foot presser system.
| MACHINE MODEL | FX701 | FX702 | FX701H | FX702H |
|---|---|---|---|---|
| NEEDLE TYPE | UY 9848 GS 300/120 | UY 9848 GS 300/120 | UY 9848 GS 300/120 | UY 9848 GS 300/120 |
| NEEDLE QUANTITY | 1 | 2 | 1 | 2 |
| YARN TYPE | Monoflament | Monoflament | Monoflament | Monoflament |
| YARN QUANTITY | 2 | 4 | 2 | 4 |
| YARN DENIER RANGE | 2500-5000 | 2500-5000 | 2500-5000 | 2500-5000 |
| DISTANCE BETWEEN NEEDLES | N/A | 7mm | N/A | 7mm |
| STITCH TYPE | Single Chain (401) |
Double Chain (401.401) | Single Chain (401) |
Double Chain (401.401) |
| STITCH LENGTH RANGE | 6-12mm | 6-12mm | 6-12mm | 6-12mm |
| TRANSPORT SYSTEM | Double (Top and Bottom) | Double (Top and Bottom) | Double (Top and Bottom) | Double (Top and Bottom) |
| PRESSING SYSTEM | Spring | Spring | Pneumatic | Pneumatic |
| PRESSING FOOT TYPE | Shock Absorber | Shock Absorber | Shock Absorber | Shock Absorber |
| MAX SPEED | 1400 rpm | 1400 rpm | 1400 rpm | 1400 rpm |
